Shure BLX188/CVL Wireless Dual Presenter System with Two CVL Lavalier Microphones (H9 Band)
SKU
BLX188/CVL-H9
$629.00
Item Backordered
Expected November 30, 2024
Only at IDJNOW
Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless Systems combine professional quality sound with simple setup and an intuitive interface for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, instrument and headset configurations, it's the most accessible way to own the stage.
Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage. The durable BLX88 offers simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems. Dual analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up. Features include microprocessor internal antenna diversity, frequency QuickScan, and two-color audio status indicator LED.
For professional presentations requiring a microphone that is heard but not seen, the Centraverse CVL Lavalier Condenser Microphone offers a compact clip-on design and simple, no-nonsense setup. The unidirectional cardioid polar pattern rejects unwanted sound for superior audio quality and vocal reproduction. Precision-engineered for years of use with all Shure wireless systems. Lavalier cardioid microphone provides superior source quality and vocal reproduction. It features construction for low visibility and a tailored frequency response for speaking and presentations.
Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage. The durable BLX88 offers simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems. Dual analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up. Features include microprocessor internal antenna diversity, frequency QuickScan, and two-color audio status indicator LED.
For professional presentations requiring a microphone that is heard but not seen, the Centraverse CVL Lavalier Condenser Microphone offers a compact clip-on design and simple, no-nonsense setup. The unidirectional cardioid polar pattern rejects unwanted sound for superior audio quality and vocal reproduction. Precision-engineered for years of use with all Shure wireless systems. Lavalier cardioid microphone provides superior source quality and vocal reproduction. It features construction for low visibility and a tailored frequency response for speaking and presentations.
Shure BLX188/CVL Wireless Dual Presenter System Features:
- Up to 12 compatible systems per frequency band (region dependent.)
- Microprocessor-controlled internal antenna diversity.
- One-touch QuickScan frequency selection quickly locates the best frequency.
- 1/4" and XLR audio outputs.
- Two color audio status indicator LED.
- Green: Normal audio levels.
- Red: Excessive audio levels (overload / clipping.)
- Adjustable output level.
- Removable antennas for quick antenna distribution.
- LCD display with detailed RF and audio metering.
- Rugged metal construction, rack mount hardware included.
- Power and battery status LED.
- Adjustable gain control.
- Quick & easy frequency matching.
- 2 AA batteries provide up to 14 hours of continuous use.
- 300 feet (91 m.)
- Centraverse CVL miniature lavalier microphone with included tie clip offers low visibility and hands-free use.
- Permanently charged electret condenser element provides clear vocal reproduction.
- Unidirectional cardioid polar pattern rejects unwanted noise for improved sound quality.
- Included windscreen reduces plosives, wind, and breath sounds.
- Tailored frequency response optimized for speaking and presentations.
- TA4F (TQG) connector seamlessly integrates with Shure wireless systems.
- Legendary Shure precision engineering for durability and performance.
Shure BLX188/CVL Specifications:
SystemWorking Range: 91 m (300 ft) Line of Sight (Actual range depends on RF signal absorption, reflection and interference.)
Audio Frequency Response: 50 to 15,000 Hz (Dependent on microphone type)
Total Harmonic Distortion (Ref. ±33 kHz deviation with 1 kHz tone): 0.5%, typical
Dynamic Range: 100 dB, A-weighted, typical
Operating Temperature: -18°C (0°F) to 57°C (135°F) (Battery characteristics may limit this range.)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
BLX1
Audio Input Level:
max: -16 dBV maximum
min (0 dB): +10 dBV maximum
Gain Adjustment Range: 26 dB
Input Impedance: 1 MΩ
RF Transmitter Output: 10 mW, typical (varies by region)
Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight: 2.6 oz. (75 g), without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
Audio Input Level:
0dB: -20 dBV maximum
-10dB: -10 dBV maximum
Gain Adjustment Range: 10 dB (varies by region)
Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
Weight: 7.7 oz. (218 g) without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline Battery Life: up to 14 hours (alkaline)
BLX88
Output Impedance:
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50 Ω
Audio Output Level: (Ref. ±33 kHz deviation with 1 kHz tone)
XLR connector: –27 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
Weight: 15.1 oz. (429 g)
Housing: Molded ABS
Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
CVL
Type: Electret Condenser
Frequency Response: 60 Hz to 12,000 Hz
Polar Pattern: Unidirectional (Cardioid)
Output Impedance @ 1 kHz: 600 Ω
Audio Output Level: -43.5 dBV/Pa
Signal-To-Noise Ratio [1] @ 1 kHz: 72 dB
Maximum SPL [1] 1000 Ω load, @ 3%THD: 139.0 dB
Dynamic Range [1] @ 1 kHz, 1000 Ω load: 117.0 dB
Equivalent Output Noise [1] typical, A-Weighted: 22 dB
Power Requirements: +5 V DC (nominal), 10 V maximum (DC bias)
Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Cable: 1.3 m (50 in.)
Connector: TA4F
Net Weight: 25 g (0.88 oz.)
[1] Measurements taken using RK100PK preamp set @ 0 dB using 8k bias resistor.
*All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity.

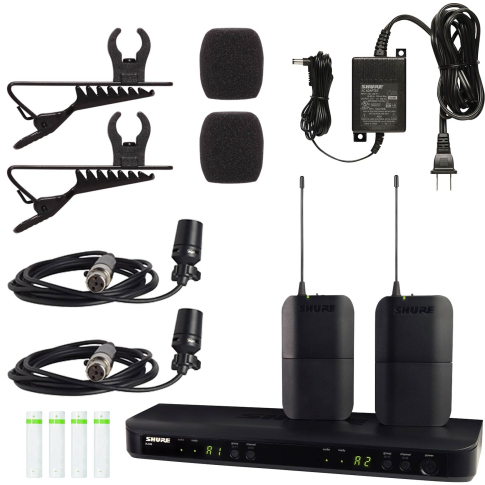

Each BLX188/CVL Retail Box Includes:
(1) BLX88 dual-channel receiver(2) BLX1 Bodypack Transmitters
(4) AA Batteries
(2) CVL lavalier microphones
(2) Lavalier clips
(2) Windscreens
(1) PS24 Power Supply
(1) User Guide
