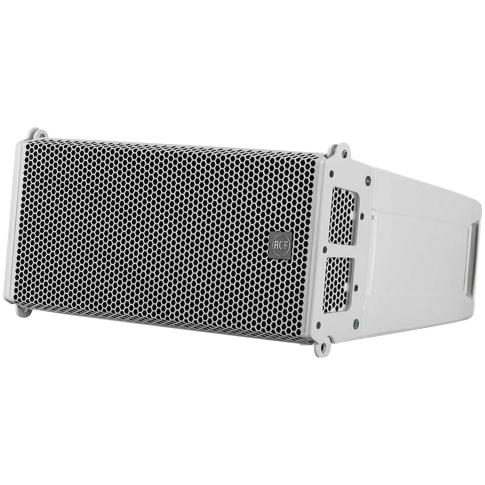

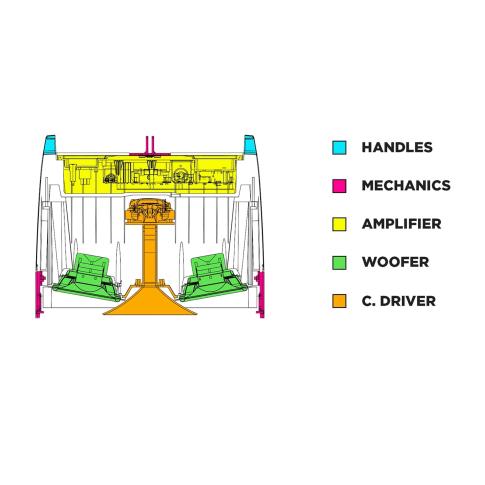

The HDL6-A-W is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers - two powerful 6.0" woofers for a solid bass reproduction plus a high powered 1.7" voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.
RCF HDL6-A Active Line Array Module Features:
- 1400 W, two-way amplification.
- 131 dB max SPL.

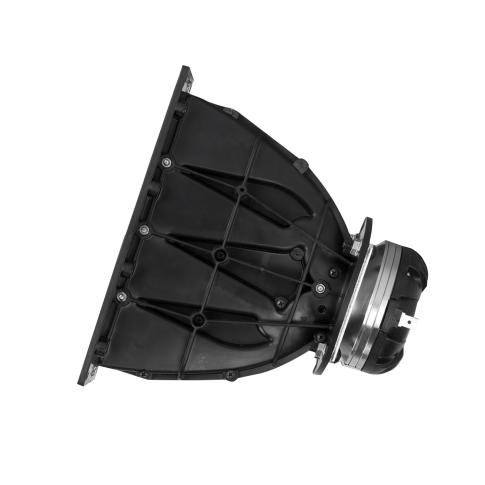

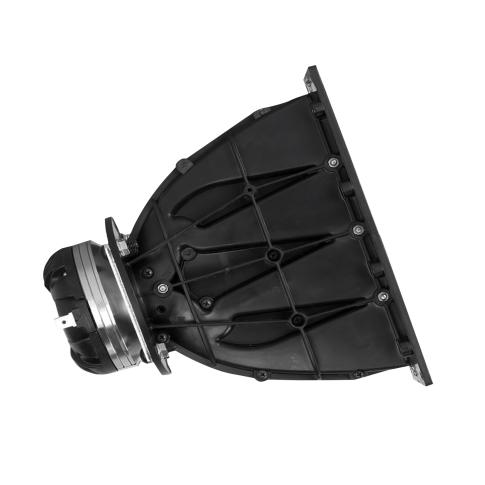

- 1.7" voice coil neodymium compression driver.

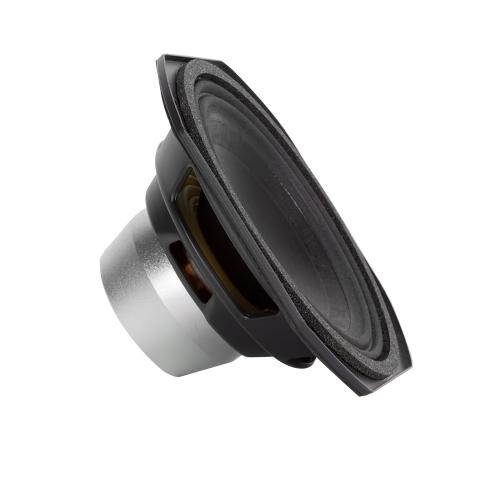

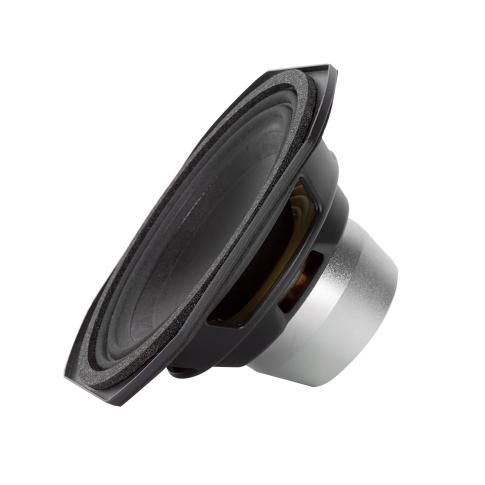

- 2 x high power neodymium 6.0" woofers.
- 48 kHz, 32 bit floating point DSP processing.
- Symmetrical design.
- Extremely low weight.
- FiRPHASE processing.
The HDL 6-A W is a two way active line array module designed for live sound reinforcement and installed sound applications. It features: 2 x 6.5-inch neodymium woofers, 1 x 1.7-inch neodymium compression driver, digital amplifier with switch mode power supply and DSP controlled Input section with selectable presets. The HDL 6-A-W delivers: 131dB max SPL; 1400 Watt peak power (700 Watts RMS); 65Hz - 20kHz frequency response.
Maximum Efficiency
The HDL 6-A W is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.
DSP Processing

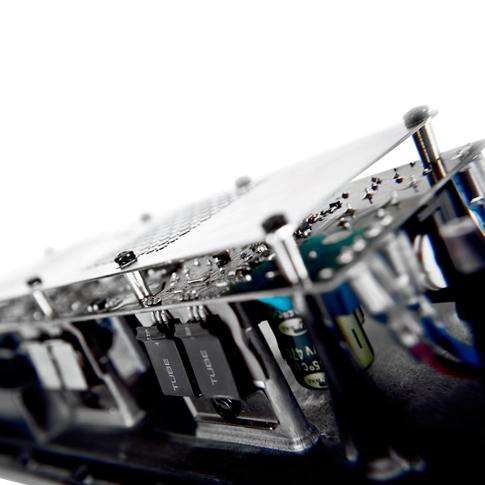

The HDL 6-A W is powered by a 1400W peak power digital amplifier, split 200W for the HF and 500W for the LF. A new generation DSP handles all the processing within the cabinet and allows adjustment of HF projection. This setting is accessed by the button on the rear of the cabinets.

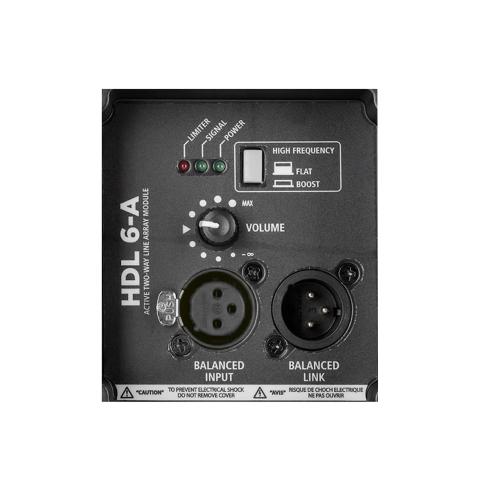

Input / Link
MAIN XLR INPUT (BAL/UNBAL). The system accept female XLR input connectors and line level signals from a mixing console or other signal source.
LINK XLR OUTPUT. The output XLR male connector provides a loop trough for speakers daisy chaining.
Volume knob
Controls the volume of the power amplifier. The control ranges from - (maximum attenuation) to the MAX level (maximum output).
Status indicators
POWER INDICATOR. Power on indicator. When the power cord is connected and the power switch is turned on this indicator lights green.
SIGNAL INDICATOR. The signal indicator lights green if there is signal present on the main XLR input.
LIMITER INDICATOR. The amplifier has a built in limiter circuit to prevent clipping of the amplifiers or overdriving the transducers. When the peak clipping circuit is active the LED blinks orange. It is okay if the limit LED blinks occasionally. If the LED blinks frequently or lights continuously, turn down the signal level. The amplifier has a built in RMS limiter. If the RMS limiter is active the LED lights red. The RMS limiter has the purpose to prevent damages the transducers. The speaker shall never be used with the limit indicator red, continuous operation with the RMS protection active can cause damages to the speaker.
