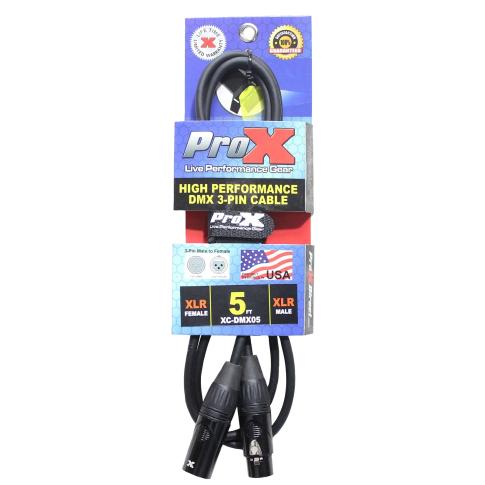

ProX XC-DMX05 5FT DMX XLR3-M to XLR3-F High Performance Cable

ProX XC-DMX05 5FT DMX XLR3-M to XLR3-F High Performance Cable

SKU #: XC-DMX05
Reg. $10.49
Now $9.40
In Stock & Ready to Ship

Most orders placed by 3pm ET ship same day (business days)

Same Day
Shipping
Best Deal
Guarantee
Authorized
Dealer
Real Gear
Experts
The ProX XC-DMX05 cable is ideal for DMX connection applications where a device with a male DMX output/input needs to be connected to a device with a female DMX output/input. It features 22AWG Oxygen-Free Copper (OFC) conductors for maximum signal transfer. Cables are not just cables, they are what protects your signal from being altered. Uncompromised signal power, with precise data transmission, is paramount for quality DMX control operations. ProX's DuoFoil and braided OFC Copper Compact shield blocks noise and protects data transfer. Bending and twisting are no match for these high-performance tour-grade DMX cables. They're designed to provide years of dependable service and outlast every other cable on the market. Complete Coil technology demands consistent weave tolerances to create precise and accurate data transmission. This is the most important part of the design and greatly affects performance.

Note: Twisted pair DMX data transmission cables are not suitable for audio use. Conversely, audio cables are not suitable for DMX data use. Their specifications and characteristics differ substantially. Always use the correct cable for reliable connections.

ProX XC-DMX05 5FT DMX Cable Features:

  • Gold Plated Contacts.
  • ProX Branded, All Metal XLR Connectors.
  • Excellent Durability and Superior Data Transfer.
  • 20 AWG x 2 Oxygen-Free Copper (OFC) conductors.
  • Extra Durable & Flexible Long Life Construction.
  • ProX Limited Lifetime Warranty.

ProX XC-DMX05 Product Specifications:
General:
Polyethylene insulation
Twisted Pair Data Cable
Polyethylene inner jacket
Duofoil (100% coverage)
Cotton plus a tinned copper braid shield (85% coverage)
PVC jacket for durability
Nominal Characteristic Impedance: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/ft
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield DC Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
Operating Temperature Range: (-30 degrees C To + 75 degrees C)

To Fit:
DMX XLR3-M to XLR3-F

UPC:
22099559757

Each XC-DMX05 Retail Box Includes:
(1) ProX XC-DMX05 5FT DMX XLR3-M to XLR3-F High Performance Cable
