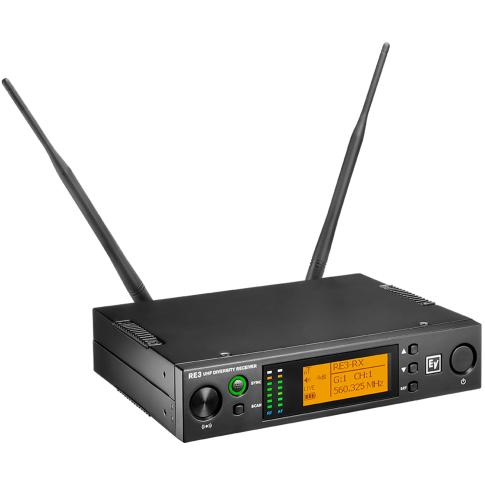

Electro-Voice RE3-RX UHF Wireless Diversity Receiver Features:
- Diversity reception minimizes dropouts.
- Frequency scanning for selecting open frequencies.
- Sync function links transmitter to receiver for easy setup.
- Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation.
- Easy-to-read LCD display.
Electro-Voice RE3-RX Specifications:
5L Band Details
Bandwidth limits (MHz): 488 – 524
Tuning bandwidth: 36 MHz
Selectable frequencies: 1440
Transmit output power (mW): 10 and 50
Coverage: Global
Frequency Oscillation Mode: Phase-locked loop (PLL)
Carrier Frequency Range: 470 - 865 MHz (tuning bandwidth is band-dependent)
Sync Frequency: Ultrasonic 40 kHz
Diversity: Antenna diversity
Bandwidth: 36MHz
Signal/Noise Ratio: >100dB(A)
Total Harmonic Distortion (Thd): <0.6%@1kHzbr>
Receiving Sensitivity: -81dBm for -12dB SINAD
Frequency Response: 63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
Antenna Type: Detachable ½ wave with BNC connector
Antenna Booster Power: DC12 - 15V/100mA
Function Display By: LCD
Contents Of Display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
Control Functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync Data Options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Audio Frequency Output Level: Ref:±22.5kHz Dev@1kHz Tone, 1/4" (6.3mm) Phone Jack:-10dBV, XLR Jack:-4dBV(Line), -24dBV(MIC)
Audio Frequency Output Impedance: 240Ω (unbalanced) 1400Ω (balanced)
Squelch and noise muting: Noise muting and tone code locking
Output Ports: 1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack
Power Supply: DC12~15V/500mA
Finish: Black polyurethane paint
Dimensions: Width: 8.27 inch (210mm)
Height: (with feet attached) 1.85 inch (47mm)
Height: (without feet attached) 1.73 inch (44mm)
Depth: (including antenna jack) 6.89 inch (175mm)
Depth: (not including antenna jack) 6.1 inch (155mm)
Net Weight: 2.71 lbs [1.23 kg]
Gross Weight: 3.28 lbs [1.49 kg]
(1) Electro-Voice RE3-RX UHF Wireless Diversity Receiver
(2) Receiver antennas
(1) Receiver power supply with four power convention specific AC plug clips
(2) Rack-mount brackets
(2) Rack-mount bracket hole filler plugs
(1) Pack of four (4) screws to mount rack brackets
(1) Safety booklet
(1) Installation manual
