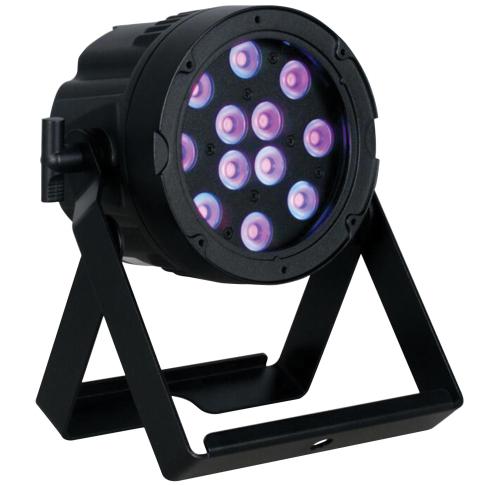

Elation Professional Prisma Par 20 IP65 Rated UV Wash Par Luminaire

SKU
PRISMA-PAR-20
$640.00

Item Backordered

Expected December 31, 2024

Only at IDJNOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

5000+ Reviews

6000+ Reviews

95%+5-star reviews

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

PRISMA PAR 20 is an exterior IP65 rated UV wash par luminaire that produces 365nm peak true UV output with zero visible light. Features include a 20 degree narrow beam angle, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminum housing, IP65 DMX 5pin XLR and locking power in/out connections.

Elation Professional Prisma Par 20 IP65 UV Wash Features:

  • IP65 Rated Exterior High-Power UV Wash Par Luminaire.
  • 20 Degree Wide Beam Angle.
  • 365nm Peak True UV Wavelength.
  • Zero Visible Light Output.

Elation Professional Prisma Par 20 Specifications:
Source
(12) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life
Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

Effects
High Speed Electronic Strobe
Variable Dimming Curve Modes

Construction
Rugged IP65 Rated Aluminum Housing
Dual Adjustable Mounting Yokes

Control
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

Connections
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
With Wired Digital Communication Network

Size / Weight
Length: 5.9 in. (150mm)
Width: 8.27 in. (210mm)
Vertical Height: 9.05 in. (230mm)
Weight: 6.0 lbs. (2.7kg)

Electrical
AC100-240V 50-60Hz
27W Max Power Consumption

Thermal
14°F to 113°F (-10°C to 45°C)
Air Cooled

Approvals / Ratings
CE | cETLus | IP65

Each Prisma Par 20 Retail Box Includes:
(1) Elation Professional Prisma Par 20 IP65 Rated UV Wash Par Luminaire
(1) Locking Power Cable
