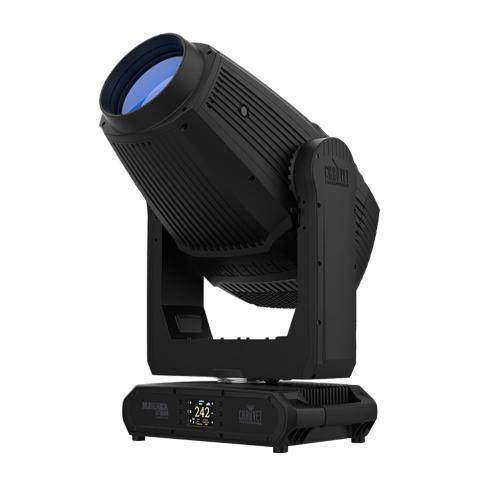

Chauvet Professional Maverick Storm 4 Profile IP65-Rated 1250W LED Yoke Profile Fixture
SKU
MAVERICKSTORM4PROFIL
$10,920.00
Item Backordered
Expected January 31, 2025
Only at IDJNOW
Maverick Storm 4 Profile brings indomitable long throw performance to even the largest venues. Its ambitious design launches over 60,000 lumens across incredible distances with commanding brightness. Built to outshine, this Maverick brings more to your show than its long throw. Master the art of domination with a sophisticated variable CMY+CTO system that delivers fantastic color rendering. Double down on crisp gobos to create complex looks with two rotating gobo wheels, two prisms, two frost filters, and an animation wheel to add even more texture. Sharp shutter framing, smooth iris and 8.5:1 zoom complete a Maverick that delivers key light and high energy kinetic effects, in an advanced IP65 alloy body that carries SunShield tech inside to protect optical components from any solar ingress through its audacious 188mm front lens.
Chauvet Professional Maverick Storm 4 Profile Yoke Fixture Features:
- Fully featured, compact and lightweight IP65 1,250 W LED yoke profile fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 8.5:1 zoom, 2 prisms (5 facet round and linear), 2 rotating gobo wheels, integrated sun shield.
- 16-bit dimming of master dimmer for smooth control of fades.
- Variable CMY + CTO color mixing system to create a wide pallet of colors.
- CRI and CTB filters on color wheel for added flexibility.
- Two rotating, indexing and interchangeable slot and lock gobo wheels.
- An animation wheel for kinetic textured effects.
- DMX, WDMX, sACN, and Art-Net for full flexibility of control options.
- RDM control over DMX for fixture reporting.
- 6.4° to 58.3° zoom range for variable beam sizes.
- Iris, 5-facet round and linear prisms and 2 frosts (light and medium) for beam control.
- True 1 compatible power input.
- Integrated sun shield for protecting the optical path from sunlight when the fixture is off.
- Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup.
- USB slot for software uploads.
- Battery backup display with auto-rotate depending on fixture orientation.
Chauvet Professional Maverick Storm 4 Profile Product Specifications:
Optical:
Light Source: 1 LEDs (CW) 1250 W, (4 A), 7500 K, 50,000 hours life expectancy
Color Temperature (at full): 6895 K
CRI: 71.5
CRI with CRI Filter: 91
Front Lens Diameter: 188 mm
Beam Angle: 6.2° to 48.7°
Field Angle: 8.4° to 54.1°
Cutoff Angle 8.8° to 58.3°
Zoom Range: 6.4° to 58.3°
Lumens – Source: 94,000
Lumens – Output: 60,756
Illuminance (6.2°) 127,159lux @ 5 m
Illuminance (58.3°) 4,019lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects:
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 6 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag
Gobos (1): 6 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 6 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
Gobo Size: Gobo Wheel 2 (rotating): 30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
Framing Shutter rotation: +/- 60° rotation.
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Linear Facets, motorized, rotating
Prism: 5 Circular Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4
Construction/Physical:
Dimensions: 18.3 x 11.93 x 32.91 in (465 x 303 x 836 mm)
Weight: 102.5 lb (46.5kg)
Exterior Color: Black
Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel
Connections:
Power Connection: Seetronic Powerkon IP65
Power Input/Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
Control:
Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
DMX Channels: 38 or 55
Art-Net Channels: 38 or 55
Modes/Personalities: 2 personalities (38, 55)
Electrical:
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 1780 W, 15.07 A @ 120 V, 60 Hz
Power and Current: 1740 W, 8.70 A @ 208 V, 60 Hz
Power and Current: 1760 W, 7.79 A @ 230 V, 50 Hz
Breaker Size: 25 A, 750 V
Certifications/Qualifications:
CE, MET, FCC, CB, UKCA
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Noise Level (ambient): 36.5 dB level @ 1 m
Noise Level (ECO): 45.8 dB level @ 1 m
Noise Level (auto): 50.1 dB level @ 1 m
Noise Level (FULL): 57.7 dB level @ 1 m
Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)
Each Maverick Storm 4 Profile Retail Box Includes:
(1) Chauvet Professional Maverick Storm 4 Profile IP65-Rated 1250W LED Yoke Profile Fixture
(1) Seetronic Powerkon IP65 power cord to Bare end
(2) 140-D Omega bracket with mounting hardware
