Chauvet DJ 4BAR LED Stage Wash Light System & ADJ MyDMX Buddy Package
About This Product
Chauvet DJ 4BAR LED Stage Wash Light System
The 4BAR is a pack-and-go must have for DJs, bands and other performers who want a complete LED wash light system. This 15-channel DMX system includes a three-pedal foot switch, adjustable tripod, packing bag and transport case. Each of the four low-profile lights can be positioned independently. With 108 red, green and blue LEDs per light, the 4BAR offers built-in automated and sound activated programs accessible with or without the foot switch.
- Complete wash lighting solution designed for mobile entertainers.
- Achieve total room or stage coverage with 4 individually adjustable heads.
- Easily set-up and tear down in minutes using the included tripod, footswitch, and carry bags.
- Increase mounting options by safely mounting to truss using the built-in bolts.
- Low-profile lights are 1.6in deep.
- Create large, coordinated light shows with other 4BAR, 4BAR Tri and 4BAR Flex fixtures in master/slave mode.
- Sound-activated programs dance to the beat of the music.
- Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs.
American DJ myDMX Buddy USB/DMX Dongle & DMX Software
myDMX Buddy is a scaled down, entry level version of myDMX 2.0. Out of the package, myDMX software will run in limited mode (No 3D visualizer, Easy Remote or Midi features). The dongle plugs directly into a 3-pin DMX input on your lighting fixture. The dongle connects with a computer via a USB connection.
Chauvet 4BAR Specifications
- DMX Channels: 3 or 15
- DMX Connectors: 3-pin
- Light Source: 432 (144 red, 144 green, 144 blue) 0.25W (20mA) LEDs 100,000hrs
- Strobe Rate: 0 - 20Hz
- Stand Height: 4.7 - 7.6ft (1.4 - 2.3m)
- Beam Angle: 21°
- Field Angle: 33°
- Illuminance: 725 lux @ 2m (per pod)
- Fits Tripod Sizes: 0.9 to 1.4in (23 to 35mm)
- Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
- Power and Current: 48W, 0.4A @ 120V 60Hz
- Power and Current: 37W, 0.2A @ 230V 50Hz
- Weight: 29lbs (13.2kg)
- Size: 48 x 2.2 x 11.2in (1,219 x 55 x 285mm)
- Approvals: CE
American DJ myDMX Buddy Specifications
- For use with any DMX512 compatible fixture
- Easy Setup, Programming and Playback
- Fixture Library Includes over 10,000 Fixture profiles from over 500 Manufactures
- Compatible with myDMX 2.0. For PC & Mac
- 256 DMX Channel, Software based, Control System
- Compatible with Mac OS and Windows, 32 & 64-bit (XP, Vista, 7 & 8)
- Dimensions (LxW): 3” x 1”/ 75 x 18mm
- 1-Year Limited Warranty

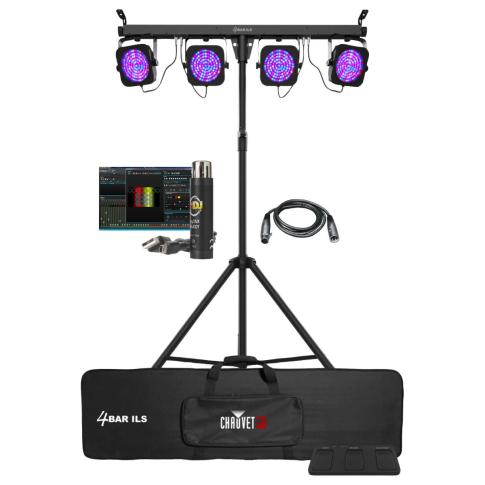

This Package Includes:
(1) Chauvet DJ 4BAR LED Stage Wash Light System
(1) American DJ myDMX Buddy USB/DMX Dongle & DMX Software
(1) 25' Sure-fit DMX connecting cable
The Chauvet 4BAR Box Includes:
(1) Chauvet 4BAR
(1) Carrying Case
(1) Tripod Carrying Case
(1) Power Cord
(1) Warranty Card
(1) Quick Reference Guide
The ADJ myDMX Buddy Box Includes:
(1) American DJ myDMX Buddy USB/DMX Dongle
(1) USB Cable
(1) Packaging Insert Card
To download the ADJ MyDMX2 Software go to:
And then click the "Downloads" tab near the bottom of the page.
** Please note: The MyDMX Buddy USB-DMX Dongle should be attached to the computer when booting the MyDMX2 software.
