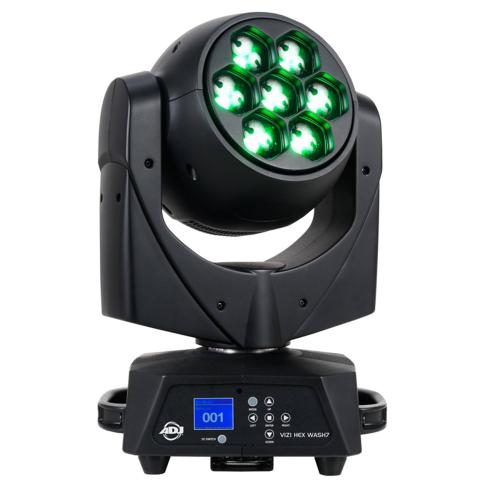

American DJ Vizi Hex Wash7 Professional Moving Head Wash Fixture
About This Product
The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. It features 64 built-in Color Macros, super fast pan/tilt movement, electronic dimming with 5 dimming curves and a pan/tilt inversion mode or contrasting movement when fixtures are linked together.
The Vizi Hex Wash7 has 3 DMX channel modes, 3-pin or 5-pin DMX connections and powerCON In/Out power linking. This fixture is ideal for stages, theaters, churches, nightclubs, concert venues and event productions.
Vizi Hex Wash7 Features:
- High Output LED Moving Head Wash with motorized zoom.
- 4-Button DMX LCD menu with 180° Inverse View mode.
- 64 built-in Color Macros.
- Fast Pan / Tilt Movement.
- 5 Dimmer Curves.
- 16-Bit Fine Pan/Tilt control.
- Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together.
- Electronic Strobe/Pulse effect; random strobe slow to fast.
- Electronic Dimming: 0% - 100%.
- Includes Omega bracket for truss mounting.
American DJ Vizi Hex Wash7 Specifications
Light Source: 7 (15) Watt HEX RGBWA+UV LED
Life Expectancy: 50,000 hrs
Beam Angle: 5~55-degree
Refresh Rate: 1.2KHz
Pan & Tilt Range: 630-degree (540 Optional) /Tilt 270-degree
Colors: 64 built-in color macros
Zoom: Motorized 5°-55°
Dimmer Curves: 5 dimmer curves
Operational Modes: 2 modes Program/ DMX
Wifly EXR DMX Range: 2,500 feet (line of site)
Demensions (LxWxH): 11.75" x 8 x15.75"/300x200 x 400mm
Weight: 19 lbs./8.5 kgs
Power Input: powerCON
Power Pass through: powerCON In/Out
Data: 3 & 5-pin In/Out DMX
DMX Modes: 2
On Board: LCD menu 180 degree inverse
16 Selectable WiFLY Address Channels
Input Voltage: 100~230 V, 50 Hz./60Hz
Power draw @120V: 137W
Power draw @ 220V:
(1) American DJ Vizi Hex Wash7
(1) PowerCON power cord
(1) User manual
(1) Omega bracket
