Be the first to review this product
SKU
OVATION-ED-200WW-19
Special Price $7,766.40 Regular Price $8,677.14
Item Backordered
Expected December 31, 2024
Ovation ED-200WW brings a 750 W tungsten equivalent warm white intensity and 95 CRI to the exclusive, award-winning Ovation ED range of LED theatrical fixtures, making it the highest power LED ellipsoidal unit that can sense and respond to traditional dimming systems. This high performance ellipsoidal is equally as efficient running on constant power and DMX, as it is when connected directly to a dimming power source. Advanced onboard electronics automatically detect what type of power and data the fixture receives, and it responds accordingly. Retrofit and upgrade to the benefits of LED lighting without being held back by previous investments made in major dimming systems.
Chauvet Professional Ovation ED-200WW LED Lighting Fixture Features:
- Warm white ERS style fixture with output exceeding a tungsten 750 W source.
- Works on conventional dimmers or constant power with DMX.
- Auto-senses power/data and responds appropriately.
- Superior low end dimming whether using dimmers or constant power.
- Perfect fixture for the retrofit market, utilizes existing dimming infrastructure flawlessly.
- 16-bit dimming resolution (DMX mode) for smooth fades.
- Flat, even field of light for superior gobo projection.
- Works perfectly with industry standard lens tubes and accessories.
- Virtually silent operation for use in any situation.
Chauvet Professional Ovation ED-200WW Product Specifications:
OPTICALLight Source: 1 LEDs (WW) 230 W, (3.4 A), 100,000 hours life expectancy
Color Temperature (at full): 3334 K
CRI: 97
Beam Angle (w/5° lens): 7°
Beam Angle (w/10° lens): 9°
Beam Angle (w/14° lens): 11°
Beam Angle (w/19° lens): 15°
Beam Angle (w/26° lens): 19°
Beam Angle (w/36° lens): 25°
Beam Angle (w/50° lens): 35°
Beam Angle (w/15°-30° lens)(Narrow): 11°
Beam Angle (w/15°-30° lens)(Wide): 17°
Beam Angle (w/25°-50° lens)(Narrow): 19°
Beam Angle (w/25°-50° lens)(Wide): 30°
Field Angle (w/5° lens): 7°
Field Angle (w/10° lens): 10°
Field Angle (w/14° lens): 14°
Field Angle (w/19° lens): 17°
Field Angle (w/26° lens): 25°
Field Angle (w/36° lens): 33°
Field Angle (w/50° lens): 50°
Field Angle (w/15°-30° lens)(Narrow): 13°
Field Angle (w/15°-30° lens)(Wide): 28°
Field Angle (w/25°-50° lens)(Narrow): 23°
Field Angle (w/25°-50° lens)(Wide): 41°
Lumens (w/5° lens):
Lumens (w/10° lens):
Lumens (w/14° lens):
Lumens (w/19° lens): 11,534
Lumens (w/36° lens): 13,946
Lumens (w/50° lens): 12,754
Lumens (w/15°-30° lens): 11,739 (@15°), 11,315 (@30°)
Lumens (w/25°-50° lens): 14,243 (@25°), 12,834 (@50°)
Illuminance (w/5° lens): 43,100 lux @ 5 m
Illuminance (w/10° lens): 23,200 lux @ 5 m
Illuminance (w/14° lens): 15,092 lux @ 5 m
Illuminance (w/19° lens): 9,118 lux @ 5 m
Illuminance (w/26° lens): 6,028 lux @ 5 m
Illuminance (w/36° lens): 3,210 lux @ 5 m
Illuminance (w/50° lens): 1,445 lux @ 5 m
Illuminance (w/15°-30° lens)(Narrow): 15,879 lux @ 5 m
Illuminance (w/15°-30° lens)(Narrow): 15,879 lux @ 5 m
Illuminance (w/25°-50° lens)(Narrow): 5,958 lux @ 5 m
Illuminance (w/25°-50° lens)(Wide): 2,283lux @ 5 m
PWM Frequency: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic or External Dimmer Rack
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 18 Hz
Dim Modes: 5
Dim Curves: 4
CONSTRUCTION / PHYSICAL
Dimensions: (fixture only): 21.5 x 15 x 15 in (545 x 380 x 380 mm)
Dimensions: (w/5° lens extended): *** x 15 x 15 in (*** x 380 x 380 mm)
Dimensions: (w/10° lens extended): *** x 15 x 15 in (*** x 380 x 380 mm)
Dimensions: (w/26° lens extended): 26.5 x 15 x 15 in (673 x 380 x 380 mm)
Dimensions: (w/15°-30° lens): 42 x 14.6 x 14.6 in (1,068 x 371 x 371 mm)
Dimensions: (w/25°-50° lens): 36.3 x 14.6 x 14.6 in (923 x 371 x 371 mm)
Weight (fixture only): 17.6 lb (7.9 kg)
Weight (w/5° lens): 23.4 lb (10.6 kg)
Weight (w/10° lens): 21.4 lb (9.7 kg)
Weight (w/14° lens): 23 lb (10.4 kg)
Weight (w/26° lens): 21.6 lb (9.8 kg)
Weight (w/15°-30° lens): 30.2 lb (13.6 kg)
Weight (w/25°-50° lens): 27.2 lb (12.3 kg)
Exterior Color: Black
Gobo Size (Optional): "A": 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
Gobo Size (Optional): "B": 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
Accessory Holder/Gel Frame Size (15°-30° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (25°-50° lens): 7.5 in (191 mm)
CONNECTIONS
Power Connection: Edison plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDM, Dimmer
DMX Channels: 1, 2 or 3
Modes/Personalities: 3 personalities (UNO, DOS, STD.P)
ELECTRICAL
Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
Power Linking: 6 units @ 120 V; 12 units @ 230 V
Power and Current: 250 W, 2.074 A @ 120 V, 60 Hz
Power and Current: 254 W, 1.103 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location

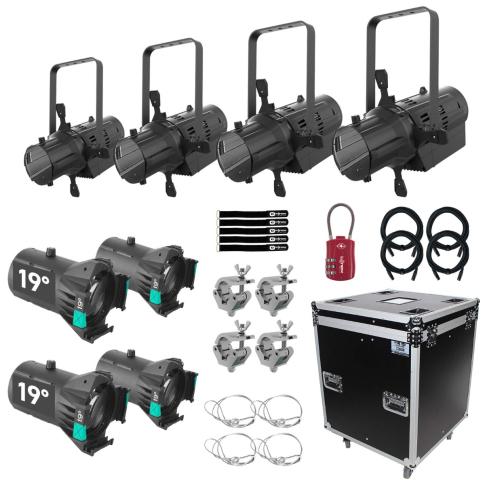

This Package Includes:
(4) Chauvet Professional Ovation ED-200WW Warm White ERS Style LED Theatrical Lighting Fixtures
(4) Neutrik powerCON power cords
(4) Chauvet Professional 19 Degree Ovation Ellipsoidal HD Lens Tubes
(4) Chauvet DJ CH-05 31" Lighting Safety Cables
(4) Global Truss Pro Clamps
(4) Clutch 25' 3-Pin DMX Lighting Cables
(1) ProX XS-SRC4X4W Road Case - fits up to 4 ETC Source Four Fixtures
(1) IDJNOW TSA Combination Lock (red)
(5) 8" Reusable Hook and Loop Cable Ties
