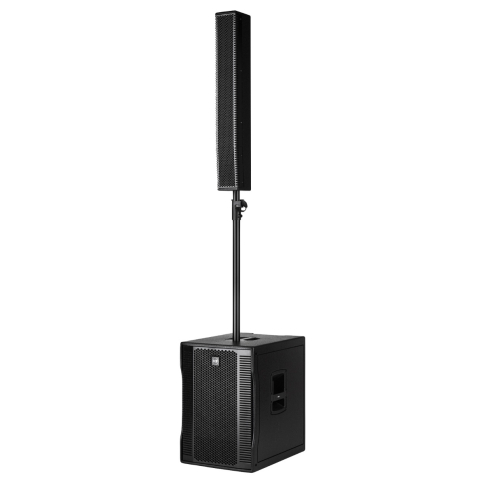

RCF EVOX 12 Active Portable 2-Way Array PA System - Store Demo
SKU
EVOX12-IO
Free Shipping on most orders with minimum purchase of $50 or more for a limited time.
Ground shipments only in the lower 48 contiguous United States.
Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.
Any questions, please call 1-800-355-7746 during normal business hours.
Offer subject to change or termination without notice. Not responsible for typographical errors.
The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.
I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700
I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100
RCF EVOX 12 Active Portable 2-Way Array PA System - Customer Return
EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier.
The top section has eight high performance neodymium 4 “full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15” subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.
EVOX 12 Features:
• 1400 Watt.
• 130 dB max SPL.
• 40 Hz 20 kHz frequency response.
• 15" Woofer.
• 8 x 4" neodymium full-range woofer.
• 90° x 30° slightly tilted pattern control.
• Innovative DSP processing.
• Pole mountable, easy set-up and transportation.
EVOX 12 Applications:
• DJs.
• Corporate events.
• Presentations.
• Performers.
RCF EVOX 12 Specifications
Acoustical Specifications
Frequency Response -3 dB: 40 Hz ÷ 20 Hz
Max SPL: 130 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 30°
Fullrange: 8x4.0", 1.0"v.c.
Woofer: 15", 3.0" v.c.
Input/Output Section
Input connectors: Jack-XLR male
Output connectors: XLR female
Input sensitivity: -2 dBu / + 4 dBu
Processor Section
Crossover frequencies: 180 Hz
Protections: thermal, rms
Limiter: Soft limiter
Controls: Volume, EQ
Amplifier Specifications
Total power: 1400 W PEAK
High frequencies: 400 W PEAK
Low frequencies: 1000 W PEAK
Total power: 700 W RMS
High frequencies: 200 W RMS
Low frequencies: 500 W RMS
Cooling: Convection
Connections: VDE connector
Cabinet
Cabinet Material: Baltic birch plywood
Handles: 2 side, 1 top
Pole Mount/Cap: Yes
Colour: black
Physical Specifications
Height: 2220/87.4 mm/inch
Width: 410/16.14 mm/inch
Depth: 560/22.05 mm/inch
Net Weight: 34.8/76.72 kg/lbs
The EVOX 12 Box Includes:
(1) RCF EVOX 12 Active Portable 2-Way Array PA System(1) Power Cord
(1) User Manual
*Please note: Customer return/Store display items are not brand new and may have minor imperfections. Due to the nature of a “Customer return item” we can not guarantee that all box components listed, will be included. Because of this, the item is discounted accordingly and sold at close to cost or below. IDJNOW does guarantee that you will receive all pertinent components for the item to function in It’s most basic form (usually just a power cord) and guarantees the item to be free from defect for 30 days from the day you receive it.
