About This Product

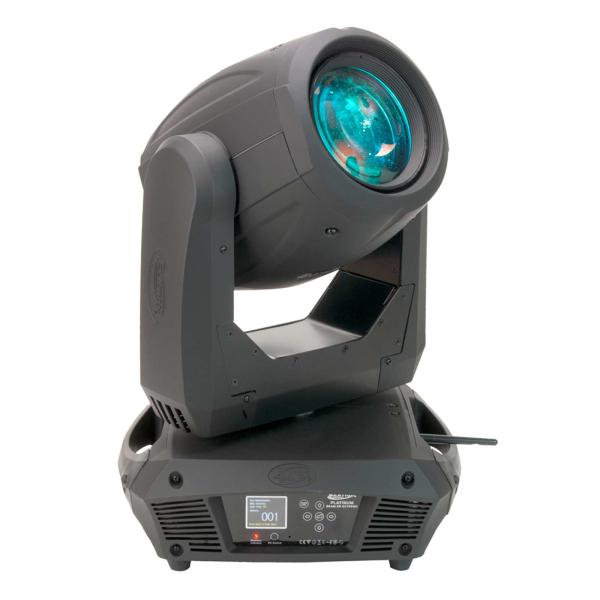

Elation Professional Platinum Beam 5R Extreme Moving Head

The new Platinum Beam 5R Extreme features the 189W Platinum 5R lamp, a 3° sharp pin spot beam, 8 facet rotating prism and frost effects, super fast 16 bit 3-phase pan/tilt motors, strobe (1-18 fps), dimming 0-100%, and focus, (12) colors including UV, CTO, CTB, and white, (8) metal rotating, indexing, interchangeable gobos, flicker free operation for TV and film, internal EWDMX wireless DMX receiver, remote device management protocol support, 3pin and 5pin DMX in/out and powerCON in connections, (6) button touch control panel, 350W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).

Platinum Beam 5R Features:

  • 3° Sharp Pin Spot Beam.
  • CTO and CTB Color Correction.
  • 8 Facet Rotating Prism and Frost Effects.
  • Super Fast 16 bit 3-Phase Pan and Tilt Motors.
  • Flicker Free Operation for TV and film.
  • Internal EWDMX Wireless DMX Receiver.
  • Remote Device Management Protocol Support.
Elation Professional Platinum Beam 5R Extreme Specifications



SOURCE
Philips 189W Platinum 5R Lamp
3,000 Hour Average Life*

*Applies to Philips™ 5R lamps with a production date of February 25, 2015, or later. Actual lamp life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.



PHOTOMETRIC DATA
100,100 LUX 9,299 FC @49.2’ (15M)



EFFECTS
Frost
Motorized Focus
Strobe (1-18 fps)
Electronic Dimming: 0% - 100%
8 Facet Rotating Prisms and Macros



COLOR
(11) Colors Including UV, CTO, and CTB



GOBOS
(8) Metal Rotating, Indexing, Interchangeable Gobos



CONTROL / CONNECTIONS
(3) DMX Channel Modes (12 / 14 / 18)
Remote Device Management
Pan Movement: 540°/630° / Tilt Movement: 270°
6 Button Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit 3-Phase Pan/Tilt Motors
3pin & 5pin DMX In/Out
powerCON In
Internal EWDMX Wireless DMX Receiver



SIZE / WEIGHT
Length: 13.9” (352mm)
Width: 13.0” (329mm)
Vertical Height: 20.0” (509mm)
Weight: 44.0 lbs. (20.0 kg)



ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
350W Max Power Consumption
14°F to 113°F (-10°C to 45°C)



APPROVALS / RATINGS
CE | cETLus | IP20

The Platinum Beam 5R Extreme Box Includes:

(1) Elation Professional Platinum Beam 5R Extreme Moving Head
(1) power cord
