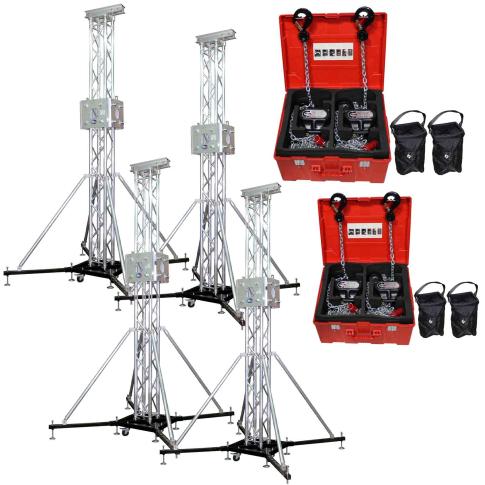

(4) ProX XTP-GSBPACK3 Truss Tower Stage Roofing System Packages with Hoists
SKU
TOWERPACK1
Limited Supply - Contact Us
Questions? Call 1-800-355-7746 or Chat below
Free Shipping on most orders with minimum purchase of $50 or more for a limited time.
Ground shipments only in the lower 48 contiguous United States.
Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.
Any questions, please call 1-800-355-7746 during normal business hours.
Offer subject to change or termination without notice. Not responsible for typographical errors.
The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.
I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700
I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100
ProX XTP-GSBPACK3 Truss Tower Stage Roofing System Package - Includes Top Block Hinges Base Outriggers and 3.28ft Truss
Full Package of four-legged outrigger Truss base, with a 4-way Square Truss junction box Sleeve Block, on a 3' long square Truss. Complete with the Rigging Top.
In this package, you have everything you need for one complete leg in the building and flying a large scale truss, supporting mid to heavy-grade level stage installations. The system includes:
- Rigger Base, with extending legs, XT-GSB
- 3.28ft Long Truss segment, XT-SQ328 (Longer segments available, price changes per length)
- 4' Outrigger Brace Tubes (4) with clamps, XT-GSOUT3
- Sleeve Block 4-Way Junction box, XT-BLOCK
- Truss Top with I-Beam mount with chain Pulley wheels, XT-TOPCM
- 4 Hinge block set, XT-HINGE
- (Winch Motor not included)
ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's rugged yet lightweight trussing solution is perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.
All ProX Truss products are 100% compatible to connect along with many other manufacturers; and are constructed to the highest safety ratings by certified welders!
Additional features:
- Tolerance Free Standard Conical connector.
- Main tube wall thickness of .08in / 2mm.
- Constructed to the highest safety ratings by certified welders.
ProX XT-MCH1TX2-30FT Set of 2 1 ton Manual Chain Stage Hoists with 30ft Chains & Heavy Duty Case
Manual Chain Hoist. No electricity needed, just your beefy muscles.
- Chain load baring is rated for 1 ton capacity.
- includes 2x 30ft / 9 meter chains & chain carry bags.
- Includes heavy duty case for all equipment.
- Ideal for stage, truss and mobile stage.
ProX XT-BLOCK Specifications
Dimensions
22.50"Length (L) X 22.50"Width (W) X 18.50"Height (H)
Weight: 77.30 lbs
Shipping Dimensions
24.00"L X 24.00"D X 20.00"H
Weight: 80.00 lbs
ProX XT-TOPCM Specifications
Dimensions
24.00"Length (L) X 9.50"Width (W) X 11.50"Height (H)
Weight: 26.40 lbs
Shipping Dimensions
25.00"L X 10.00"D X 12.00"H
Weight: 28.00 lbs
ProX XT-GSB Specifications
Dimensions
28.50"Length (L) X 28.50"Width (W) X 9.00"Height (H)
Weight: 63.80 lbs
Shipping Dimensions
29.50"L X 29.50"D X 10.00"H
Weight: 65.00 lbs
ProX XT-GSOUTS3 Specifications
2" Diameter Tube with Clamp and Bolted hinge.
64" Alluminum Assist Tube with Clamp
36" Steel Base feet
ProX XT-SQ328 Specifications
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: ~5.0 lbs/ft / ~7.0/m
Main Tube: 2in / 50mm
Braces: .75in / 20mm
Material: EN-AWT6 6082 Aluminum
Actual Height: 3.28 ft (1 Meter) Square Truss Segment
Actual Weight: 19 lbs.
Outside: 290mm - 11 7/16"
Tubing: 2"
Bracing: 3/4"
Includes connecting hardware set.
Dimensions
12.00"Length (L) X 12.00"Width (W) X 39.36"Height (H)
Weight: 19.00 lbs
All ProX Truss products are 100% compatible to connect along with many other manufacturers.
ProX XT-MCH1TX2-30FT Specifications
Dimensions
15.00"Length (L) X 19.00"Width (W) X 11.00"Height (H)
Weight: 104.00 lbs
This Package Includes:
(4) ProX XTP-GSBPACK3 Truss Tower Stage Roofing System Packages
(2) ProX XT-MCH1TX2-30FT Sets of 2 1Ton Manual Chain Stage Hoists with 30ft Chains & Heavy Duty Cases
Each XTP-GSBPACK3 Truss Tower Package Includes the following components:
(1) ProX XT-BLOCK Sleeve Block for 12" Trussing
(1) ProX XT-TOPCM Top Truss Section for Electric Motor or Manual Chain Hoist
(4) ProX XT-HINGE Single Tube Hinge Blocks
(1) ProX XT-GSB Universal Ground Support Base On Wheels
(4) ProX XT-GSOUTS3 Outrigger Braces for Ground Support
(1) ProX XT-SQ328 3.28ft (1.00m) Square Truss Segments
The XT-MCH1TX2-30FT Box Includes:
(2) 1 ton Manual Chain Stage Hoists with 30ft / 9m Chains
(2) Carry bags for the chains
(1) Heavy duty carry case for all equipment
